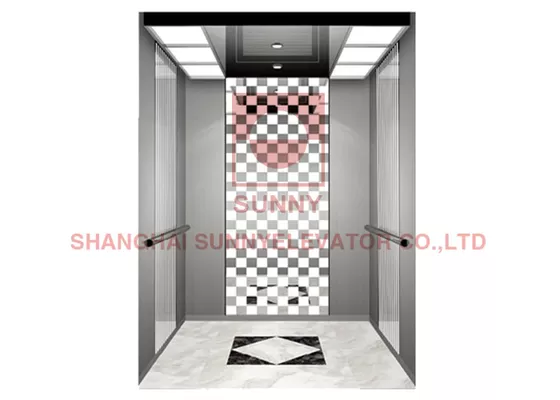

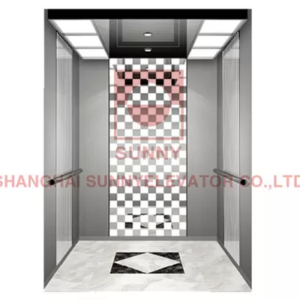

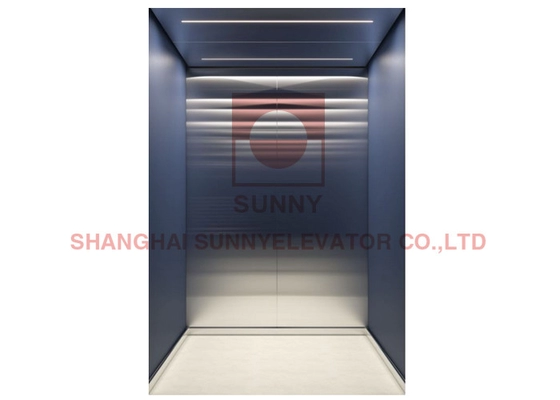

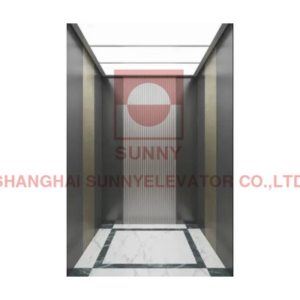

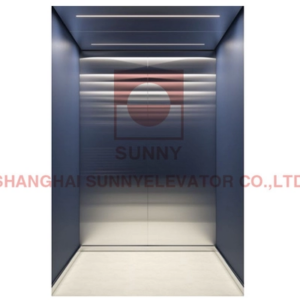

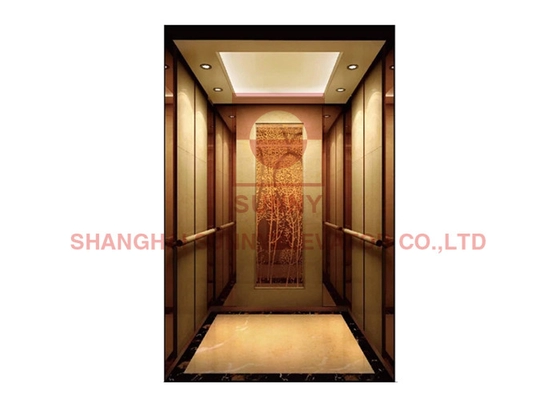

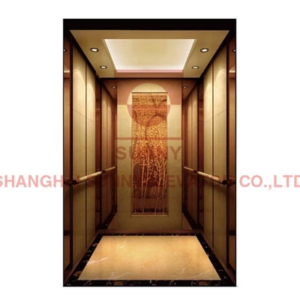

Sightseeing Home Passenger Elevator Custom Design

1. Combinationofline and circle pattems in HAIRUINE ETCHING 2. Uses haidlinematenials 3. High interior of cars secured due to slimming of aluminum clilig thickness

SUNNY Home Elevator Description

We offer a unique range of Home Elevators. This range requires minimum space and does not require a head room or pit. Moreover, these lifts consume power only while going up and can even work in single phase if required. In case of power failure once can easily come down manually. Owing to the innovative design of the range, the significant cost on pillars and sidewalls can be completely saved.

It displays the outstanding properties in a limited space. It has no machine room. Extremely small top-floor height can match with various old and new residences. Relying on the standard track installation system, the elevator can be installed more quickly and conveniently. In addition, the smooth start and leveling system bring about the rare stable elevator operation.

SUNNY Elevator Specification

It’s wall	Hairline stainless steel
Ceiling	According to the car design
Car bottom	PVC
Jamb material	Hairline stainless steel
Hall door	Hairline stainless steel

Load capacity (Kg)	Rated Speed m/s	Car Size cw*cd(mm)	Door Opening Size ew*eh(mm)	Shaft Size hw*hd(mm)	Top floor height Th(mm)	Pit Depth (mm)
450	1	1100×1100	800×2100	2050×1850	4500	1500
630	1	1400×1100	800×2100	2250×1900	4500	1500
	1.5				4700	1600
	1.75
800	1	1400×1350	800×2100	2200×1950	4000	1500
	1.5/ 1.75				4700	1600
1000	1	1500×1550	900×2100	2350×2150	4000	1600
	1.5/ 1.75				4700	1600
1600	1	1800*2000	1100*2100	2900*2200	4350	1500
	1.5/ 1.75				4500	1600

About SUNNY Elevator

SUNNY Elevator is always engaged in researching into, developing, manufacturing various building traffic and transport systems such as elevator, escalator, moving walk etc. Through the centurial trials and hardships, SUNNY Elevator never changes its advanced technology.

SUNNY Elevators safely operate in all kinds of high grade buildings in over 100 countries and regions. As time flies, it continues the rigorous and conscientious spirits of the German nation. SUNNY Elevator popular-fixes the most superb elevators and escalators all aver the world and opens the gate of the artistic elevator palace.

FAQ

1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
