MRL Gearless Automobile Elevator Simple Operation

SUNNY Elevator mainly covers passenger elevator, sightseeing elevator, machine-roomless elevator, car elevator, villa elevator, bottomless villa elevator, escalator, moving sidewalk, medical elevator, cargo elevator, sundry elevator, stretcher elevator, hydraulic elevator platform, supermarket shopping cart elevator and other categories.The company has a wide variety of products with high quality.Looking forward to your visit!

SUNNY Car Elevator Description

We develop amd produce SUNNY automobile elevator through absorption, transformation and enhancement by introducing the world’s, well-developed automobile elevation technology. The powerful technical capacity of SUNNY reduces the traction system burden due to uneven force to the elevator car. It solves the technical obstacle of shaking elevator car due to noise production. It optimizes the characteristics of the product series.

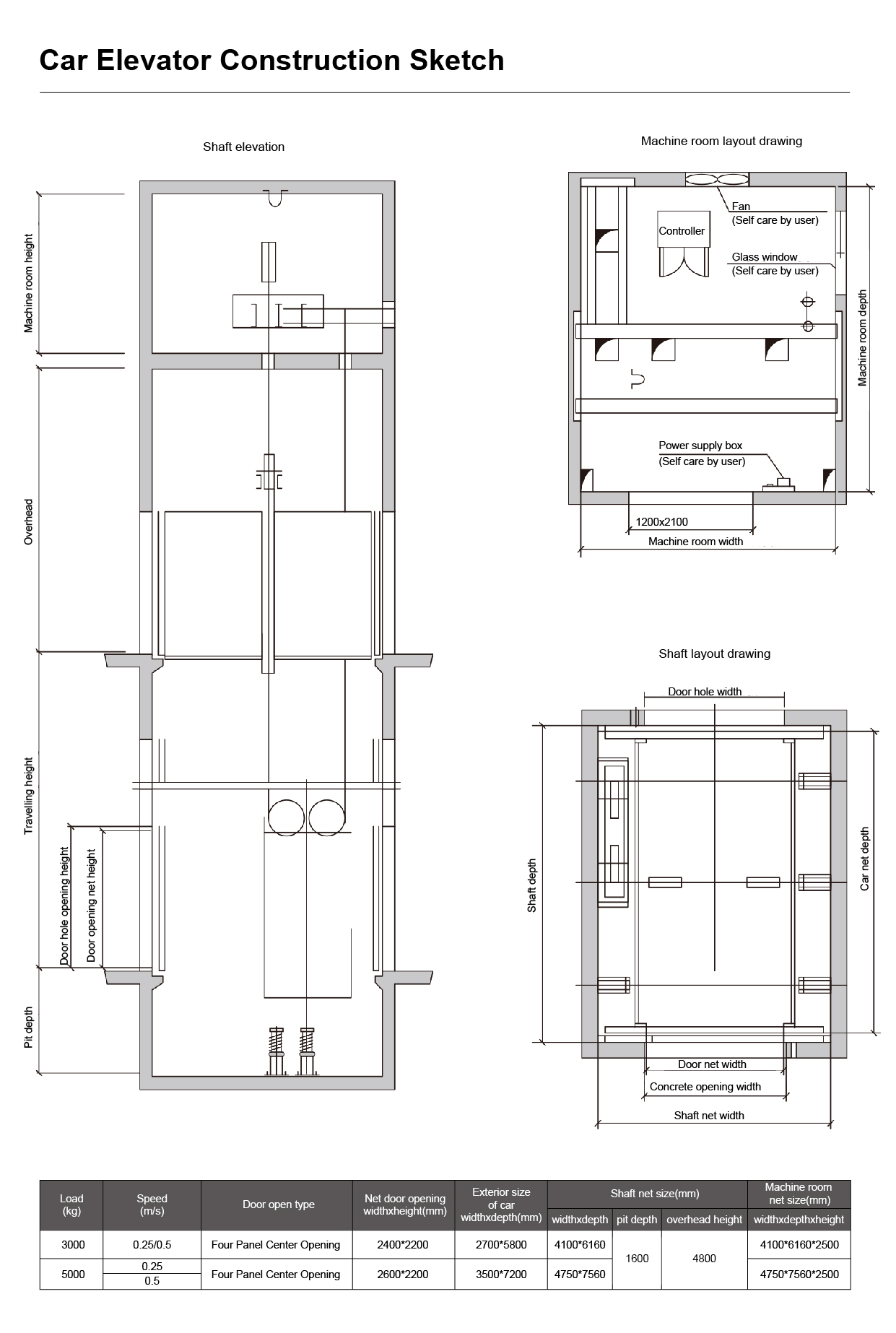

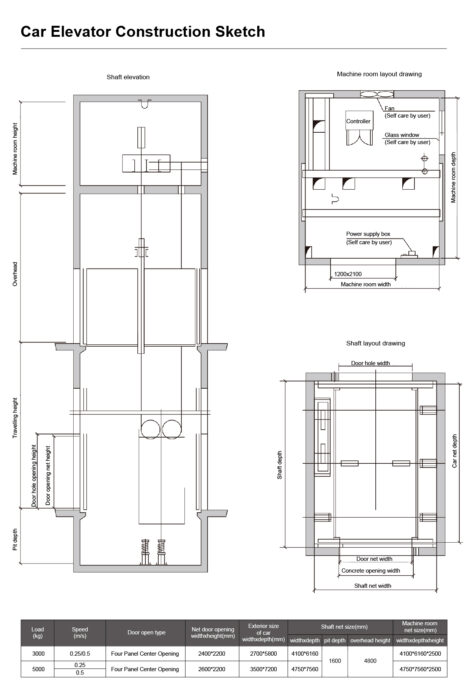

SUNNY Car Elevator Specification

Capacity	Speed m/s	Car net width x depth mm	Door width x depth mm	Shaft width x depth mm	MR width x depth mm	PD mm	OH mm
kg	Speed m/s	Car net width x depth mm	Door width x depth mm	Shaft width x depth mm	MR width x depth mm	PD mm	OH mm
3000	0.25/0.5	2500*6000	2500*2300	4200*6500	4200*6500	1700	4800
5000	0.25/0.5	3200*7000	2800*2300	4800*7500	4800*7500	1700	4800
Capacity	Speed m/s	Car net width x depth mm	Door width x depth mm	Shaft width x depth mm	MR width x depth mm	PD mm	OH mm
kg	Speed m/s	Car net width x depth mm	Door width x depth mm	Shaft width x depth mm	MR width x depth mm	PD mm	OH mm
3000	0.5/1.0	2500*6000	2500*2300	4200*6500	4200*6500	1700	5000
4000	0.5/1.0	2800*7000	2800*2300	4600*7500	4800*7500	1700	5000

About SUNNY Elevator

SUNNY Elevator is always engaged in researching into, developing, manufacturing various building traffic and transport systems such as elevator, escalator, moving walk etc. Through the centurial trials and hardships, SUNNY Elevator never changes its advanced technology.

SUNNY Elevators safely operate in all kinds of high grade buildings in over 100 countries and regions. As time flies, it continues the rigorous and conscientious spirits of the German nation. SUNNY Elevator popular-fixes the most superb elevators and escalators all aver the world and opens the gate of the artistic elevator palace.

FAQ

1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?

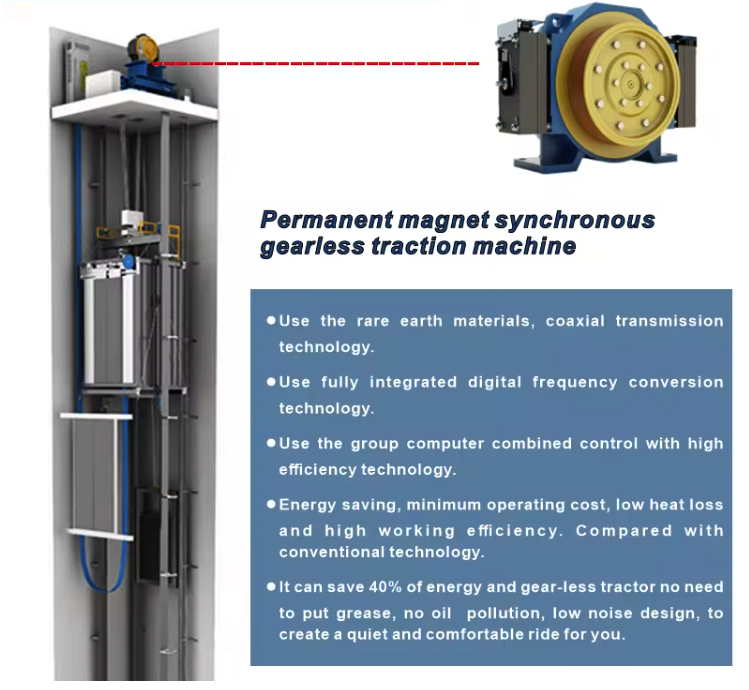

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
